SANY 2nd Generation Diesel Dump Trucks

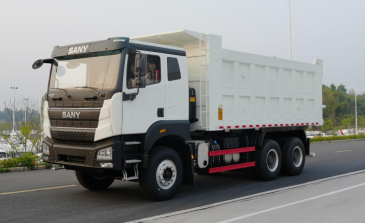

SANY 8×4 Diesel Dump Truck

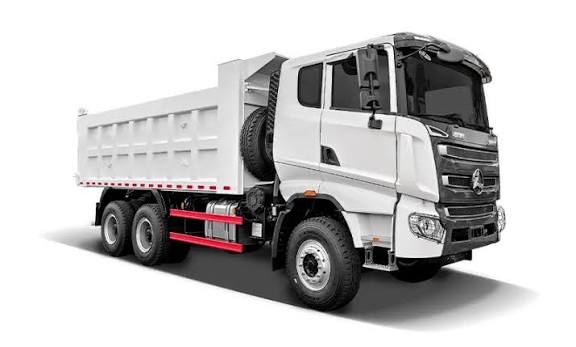

SANY 6×4 Diesel Dump Truck
Large-capacity heavy-duty cargo box
DEUTZ and Yuchai high-performance power system
Heavy-duty high-reliability axleHydraulic retarder braking system
R24 high-load mining tyreHigh-performance DEUTZ and Yuchai engines combined with 12-speed gearboxes provide 340-462hp and maximum torque of 1570-2200N·m.
https://sanytrucks.pilatus.co.zm/wp-content/uploads/2026/07/Screenshot-from-2026-07-23-23-02-06.pngLarge-capacity cargo boxes are approximately 4-6m³ larger than comparable configurations, helping increase transport productivity and revenue potential.
Heavy-duty axle assembly designed for a service life of up to 1.8 million kilometres, with reliability stated as approximately 1.5 times the industry standard.
1.8 Million kmParallel-connected hydraulic retarder provides up to 4000N·m braking torque and doubles auxiliary braking efficiency.
4000N·mAdvanced auxiliary braking can increase the service life of brake drums and brake linings by more than 60%.
60%+New modular body design improves structural strength for demanding operating environments.
+30%Three-stage filtration removes over 99% of particles above 4μm and improves adaptability to biodiesel applications.
99%+High-load mining tyres improve mud-road passability and load-bearing capability while helping reduce tyre blowouts.
R24High-performance DEUTZ and Yuchai engines, 12-speed transmissions, large-capacity cargo bodies and advanced diesel filtration deliver strong productivity, dependable operation and improved earning potential across mining and construction applications.
Energy cost savings 120$ • Carbon credit earnings 120$
| Model | 8×4 Diesel Truck | 6×4 Diesel Truck |
|---|---|---|
| Model Codes | SYZ436C-9S(R), SYZ440C-8S(R), SYZ448C-9S(R), SYZ455C-8S(R) | SYZ320C-8S(R), SYZ328C-8S(R), SYZ331C-8S(R), SYZ334C-8S(R), SYZ338C-8S(R), SYZ346C-8S(R), SYZ324C-8Y(R), SYZ328C-8Y(R), SYZ324C-8S |
| Application | Nickel Mine / Coal Mine | OB / Nickel Mine / Coal Mine / Urban Construction |
| Engine Power | 462hp | 340 / 400 / 462hp |
| Body Volume | 36 / 40 / 48 / 55m³ | 14 / 20 / 24 / 28 / 31 / 34 / 38 / 46m³ |
| Axles | 9.5t Front + 16t Rear | 9t or 9.5t Front + 16t Rear |
| Curb Weight (kg) | 22,500 | 15,200-18,000 |
| GVW (kg) | 66,000 | 24,000-55,000 |
| Frame (mm) | 8+8+4 | 8+6 / 8+8+4 / 8+8+(4) |
| Wheelbase (mm) | 2000+3350+1500 / 2000+3950+1500 / 2000+4850+1500 | 4000+1400 / 4150+1500 / 4200+1400 / 5150+1500 |
| Engine | DEUTZ D12C3-462E1 | DEUTZ D12C5-462E1 / Yuchai YC6MK400-33 / DEUTZ D09C5-340E3 |
| Displacement (L) | 12.12 | 8.7 / 10.338 / 12.12 |
| Rated Power | 340kW / 1900rpm | 250 / 290 / 340kW at 1900rpm |
| Maximum Torque | 2200N·m / 1100-1400rpm | 1570-2200N·m / 1000-1500rpm |
| Emission Standard | Euro III | Euro II / Euro III / Euro V |
| Gearbox | 12JSDX240T-B | 12JSD160TA / 12JSDX200T-B / 12JSDX240T-B |
| Front Axle | 9.5t | 9t / 9.5t |
| Rear Axle | 16t | 16t |
| Cab | SANY CB329 | SANY CB329 |
| Tyres | 12.00 R24 | 11.00 R20 / 12.00 R20 / 12.00 R24 |
| Fuel Tank | 400L | 300L / 400L |
| Body Capacity | 36 / 40 / 48 / 55m³ | 14 / 20 / 24 / 28 / 31 / 34 / 38 / 46m³ |
| Body Shape | U Shape / Rectangular | U Shape / Rectangular |
| Price | Contact Sales | Contact Sales |
