EXTENDED RANGE
636kWh bottom-mounted power battery delivering a standard-load driving range of up to 500km.
DESIGN
4X2 636kWh Standard Electric Heavy Truck
4X2 636kWh Standard Electric Heavy Truck

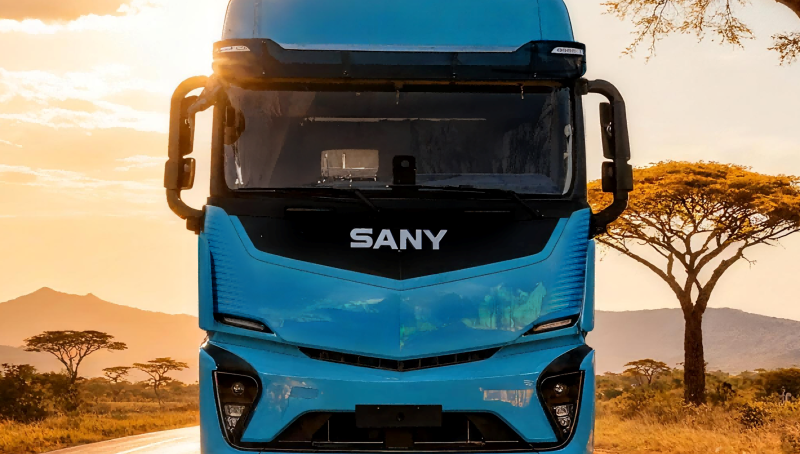

Electric heavy truck exterior design

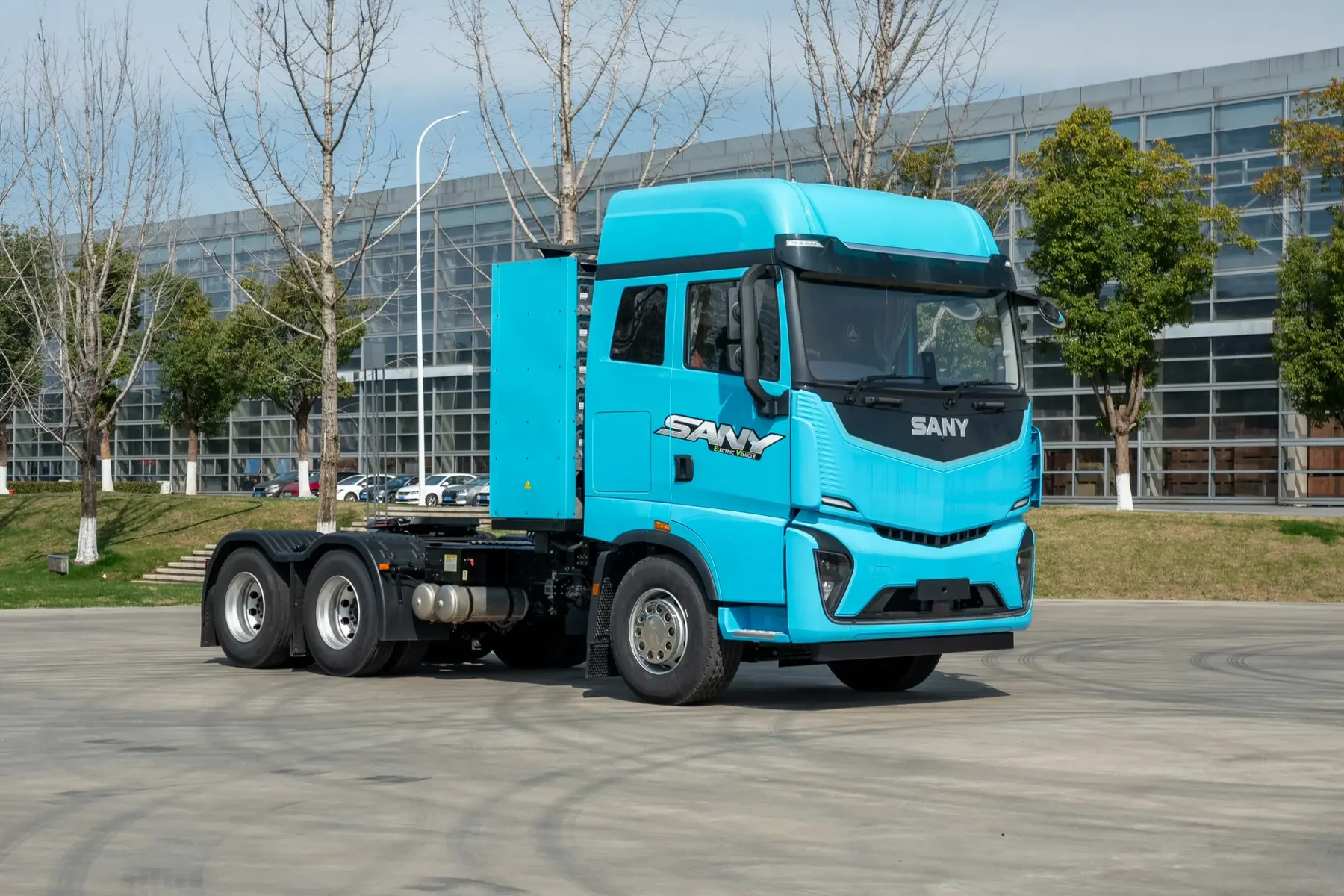

High-performance electric drivetrain
636kWh battery and charging systemPOWER
ULTRA-FAST CHARGING
Dual-gun CCS2 charging at 1000A, providing approximately 300km of additional range from a 400kWh charge in just 30 minutes and improving operational efficiency.
DUAL-POWER MATRIX
420/730kW dual electric drive axles delivering approximately 980hp peak power through a high-performance dual-motor E-axle system.
DUAL-POWER MATRIX
High-Performance Dual-Motor E-Axle
Electric drive system engineered for heavy-duty transportation with high torque and strong power output.
730kW Peak PowerHeavy-Duty Capability
Technically permissible gross combination weight engineered for demanding commercial transport applications.
42,000kgUltra-Fast Charging
1000A dual-gun DC fast charging using Europe's Standard CCS2 charging system.
20%-80% ≤30min
SUSTAINABILITY
DRIVING THE FUTURE OF GREEN TRANSPORT
636kWh high-capacity battery system with a standard-load driving range of up to 500km, ultra-fast CCS2 charging and braking energy regeneration for efficient electric heavy-duty transport.
A PROFITABLE INVESTMENT
Reduce
120 CO₂ tYour Total Gains
500 $Energy cost savings 120$ • Carbon credit earnings 120$
SPECIFICATION
| Model | 4X2 636kWh Standard Version | |
|---|---|---|
| Host Code | KEV113263686 | |
| Driver's seat location | Left hand drive | |
| Length×Width×Height (unladen) (mm) | 6640×2540×3870 | |
| Wheelbase (mm) | 4000 | |
| Front overhang / Rear overhang (mm) | 1540/1100 | |
| The Fifth-wheel | 50# fifth wheel | |
| Front distance of the fifth-wheel (mm) | 1050 | |
| Height of the fifth-wheel (mm) | 1180±20 | |
| Minimum ground clearance (mm) | 190 | |
| Front turning radius (mm) | 2080 | |
| Rear turning radius (mm) | 2280 | |
| Curb weight (kg) | 10,900 | |
| Technically Permissible Gross Combination Weight (kg) | 42,000 | |
| Gross vehicle weight (kg) | 20,000 | |
| Frame Section Height×Section Width×Frame Thickness (mm) | 300×80×(8+5) | |
| Driving Motor Type | High-performance Dual-motor E-axle | |
| Rated Power / Rotation Speed / Torque | 420kW / 4500r/min / 1000N·m | |
| Peak Power / Rotation Speed / Torque | 730kW / 8500r/min / 1760N·m | |
| Battery Capacity | 636kWh | |
| Energy Supply Method | 1000A dual-gun DC fast-charging | |
| Charging Standard | Europe's Standard CCS2 | |
| Charging Time | 20%-80% ≤30min | |
| Transmission Type | Double 2-speed AMT | |
| Number of Gears | 2-speed | |
| Transmission Take-off | Rated transmission output: 980N·m | |
| Vehicle Control Unit | Central domain controller XCU | |
| Front Axle Load Capacity | 9t | |
| Rear Axle Load Capacity | 13t | |
| Rear Axle 1st Speed Ratio | 35.26 | |
| Rear Axle 2nd Speed Ratio | 13.07 | |
| Rear Axle Reverse Speed Ratio | 35.26 | |
| Tyres | Steering axle tires: 385/55 R22.5; Drive axle tires: 315/70 R22.5 | |
| Rim | Steel/Aluminum | |
| Suspension | Air suspension | |
| Braking System | EBS+ESC+Braking energy regeneration system | |
| Price | Contact Sales |
